Robotic Cell 1 - Saddle Welder

​

A Robotic Welding Cell with 2 drop down work areas allowing for 1 staff to load and the other unload/weld. The Saddle welder is responsible for welding the East West Pivot point that sits between the main beam and the Crossbar. The ABB Robot and Fronius Welder are good companions for good quality reliable and quick welding.



Cell Details:

Dual Load Cell (Purchased from FORD Motor)

Air Extraction fan

Serial Number: 14-27400

Fronius TransPulse Synergic 4000 Mig Controller

ABB IRB 1410 Robot with S4C+ M2000 Controller

Fronius Weld tip cleaner

Cell dimensions are 2.4m x 3.2m x 2.6m

​

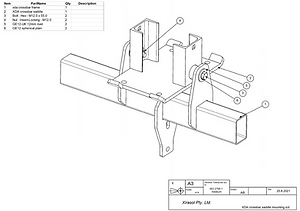

Installed Saddle Drawing:

​

​

​

​

​

​

​

​

​

​​​​​​​​​​​​​​​Weld and Jig Configuration:
